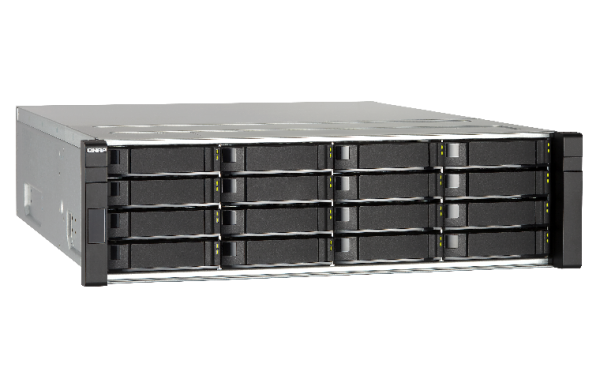

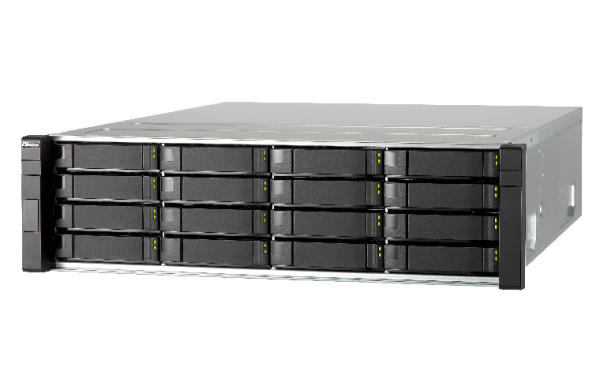

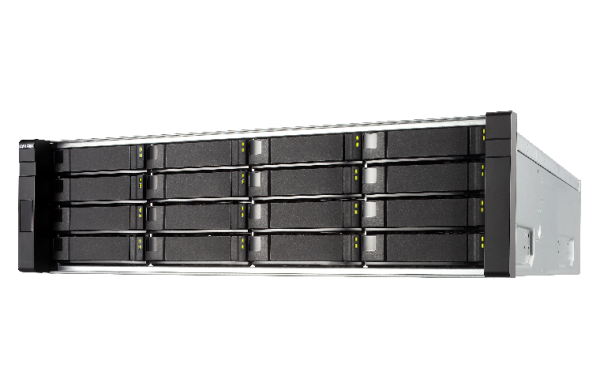

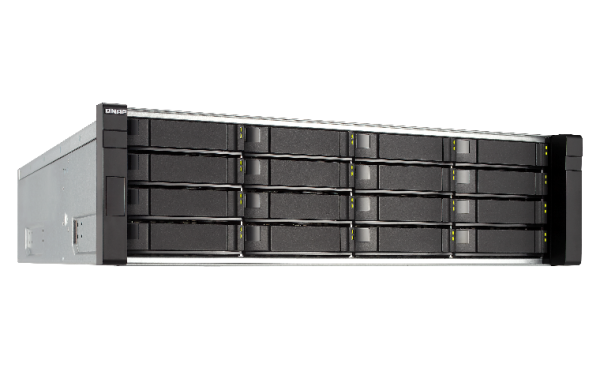

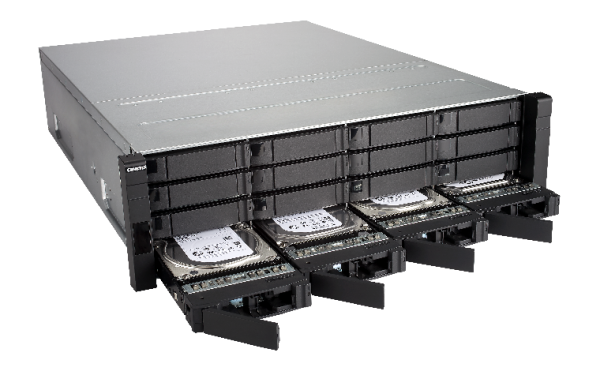

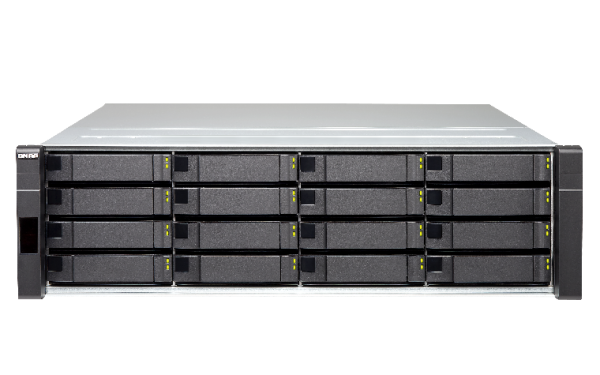

The ES1640dc is whole-new product line developed by QNAP for mission-critical tasks and intensive virtualization applications. With Intel® Xeon® E5 processors, dual active controllers, ZFS, HPE Helion compatibility and fully supporting virtualization environments, the ES1640dc delivers “real business-class” cloud computing data storage. The ES1640dc features the brand-new QES operating system that allows almost limitless snapshots, block-level data deduplication, and thin provisioning with reclaim, assisting businesses in building the most cost-efficient VDI platform and storage for critical data. The ES1640dc provides the same user experience as the current QNAP NAS and QTS system, allowing business users to enjoy the easy learning curve and quickly deploy the system, and making it ideal for small and medium businesses with budget constraints or large-scale IT divisions coping with mission-critical tasks.
Qnap Storage ES-164DC
تومان0
The ES1640dc is whole-new product line developed by QNAP for mission-critical tasks and intensive virtualization applications. With Intel® Xeon® E5 processors, dual active controllers, ZFS, HPE Helion compatibility and fully supporting virtualization environments, the ES1640dc delivers “real busines…
| CPU |
2.20GHz) ,Intel Xeon E5-2400 v2 family processor/ Intel Xeon 6-core Processor E5-2420 v2 (15M Cache |
|---|---|
| memory |
System memory: DDR3 RDIMM |
| USB |
2 x USB 3.0/2.0 port |
| Hard Drive |
16 x 3.5" SAS (6Gbps) ,or 2.5" SAS/SATA SSD (LSISS9252 6Gb/s SAS/SATA Interposer is required.) ,SATA (6Gbps/3Gbps) hard drive |
| Maximized Raw Capacity |
128TB (Configuration: 16 x 8TB hard drives) |
| Hard Drive Interface |
backwards compatible with SATA 6Gbps (LSISS9252 6Gb/s SAS/SATA Interposer is required.) ,SAS 6Gb/s |
| 10/100/1000 Mbps LAN Port |
1 for each controller (for remote management) |
| 10Gbps LAN Port |
2 x RJ45 ,Intel X540-BT2 for each controller |
| PCIe Slot |
PCIe Slot x8 (Gen3 x8): reserved for 40GbE or 10GbE LAN card/ PCIe Slot x4 (Gen2 x4): reserved for dual path Mini-SAS |
| Cache |
mSATA SSD dedicated to NVRAM ,SATA signaling |
| Weight |
Net weight (NAS only): 26.75 kg / 58.97 lb Gross weight (with packing and accessories): 36.94 kg / 81.44 lb |
| Power Consumption |
Sleep mode: 314.86 W In operation: 501.40 W |
| Power Supply |
770 W (Redundancy for fault tolerance) |
| Dimensions |
618(D) x 446.2(W) x 132(H) mm (excluding front grips) |
| Sound Level |
Sound pressure (LpAm) (bystander position): 66.1dB |
