تین کلاینت اچ پی HP T520 Thin Client

NOTE:

*This system requires a 64-bit operating system and 64-bit software products to take advantage of the 64-bit processing capabilities of AMD technology. Multi-core processing available with AMD technology is designed to improve performance of this system. Given the wide range of software applications available, performance of a system including a 64-bit operating system will vary.

• Type
  DDR3L-1600 SODIMM SDRAM
• Data Rate
  1600 MT/s
• Peak Transfer Rate
  12800 MB/s
• Number of slots
  1
• Available Capacities
  4GB, 8GB

NOTE:

*Graphics chipset uses part of the total system memory (RAM) for graphics performance. System memory dedicated to graphics performance is not available for other use by other programs.

• Type
  M.2 Solid State Drive
• Number of slots
  1
• Available Capacities
  8GB, 16GB, 32GB, 64GB

NOTE:

This table represents a sample of possible modes that this controller is capable of displaying but various factors such as the capability and EDID information returned by the attached monitor, the interface used (DVI-I/DisplayPort or optional D-SUB with dongle), and dual monitor mode may limit the availability of modes, color depth, and/or refresh rate.

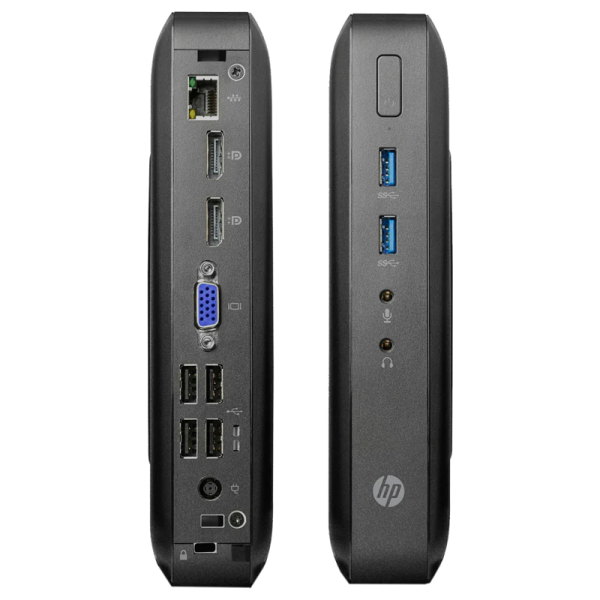

• USB 3.0
  2 ports, front access
• USB 2.0
  4 ports, rear access
  Keyboard and mouse utilize two ports
• Video
  2 Digital DisplayPort1.2 with multi stream video outputs
  1 Analog VGA video output

  NOTE:

  Only two video streams are provided by the system. Any combination of two from the three available video outputs can be utilized at one time.

• Audio
  1 1/8-inch stereo mini jack on front panel marked as headphone
  1 1/8-inch stereo mini jack on front panel marked as microphone
• Network
  1 Gigabit Ethernet network interface

NOTE:

*This system requires a 64-bit operating system and 64-bit software products to take advantage of the 64-bit processing capabilities of AMD technology. Multi-core processing available with AMD technology is designed to improve performance of this system. Given the wide range of software applications available, performance of a system including a 64-bit operating system will vary.

• Type
  DDR3L-1600 SODIMM SDRAM
• Data Rate
  1600 MT/s
• Peak Transfer Rate
  12800 MB/s
• Number of slots
  1
• Available Capacities
  4GB, 8GB

• USB 3.0
  2 ports, front access
• USB 2.0
  4 ports, rear access
  Keyboard and mouse utilize two ports

• 4.51 x 20.00 x 20.01 cm (1.78 x 7.87 x 7.87 in)

• 1.04 kg (2.29 lb)

NOTE:

Options and add-ins will increase weight.

NOTE:

Dimensions and weights are approximate.

• Windows® Embedded 8 Standard (64-bit)
• Windows® Embedded Standard 7E (32-bit)
• HP Smart Zero Core (32-bit)
• HP ThinPro (32-bit)

• 10° to 40°C (50° to 104°F)

• 10° to 35°C (50° to 95°F)

• 10° to 40°C (50° to 104°F)

NOTE:

Specifications are at sea level with altitude derating of 1° C/300m (1.8° F/1000ft) to a maximum of 3 Km (10,000 ft), with no direct, sustained sunlight. Upper limit may be limited by the type and number of options installed.

• 20% to 80%

• 10% to 90%

NOTE:

Specifications are at sea level with altitude derating of 1° C/300m (1.8° F/1000ft) to a maximum of 3 Km (10,000 ft), with no direct, sustained sunlight. Upper limit may be limited by the type and number of options installed.

• Energy Star Category B
• EPEAT Gold registered where applicable/supported, see www.epeat.net for registration status by country.
